Genus Camponotus subgenus Myrmotrema
Camponotus (Myrmotrema) carbo Emery

Camponotus (Myrmotrema) carbo Emery

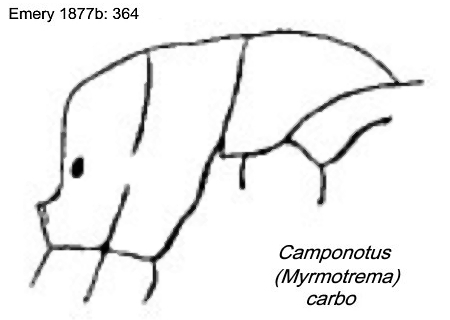

return to key {link to the Hymenoptera Name Server} Type location Eritrea (Camponotus carbo n. sp., Emery, 1877b: 364, illustrated, worker) Sciotel, Beccari - see below

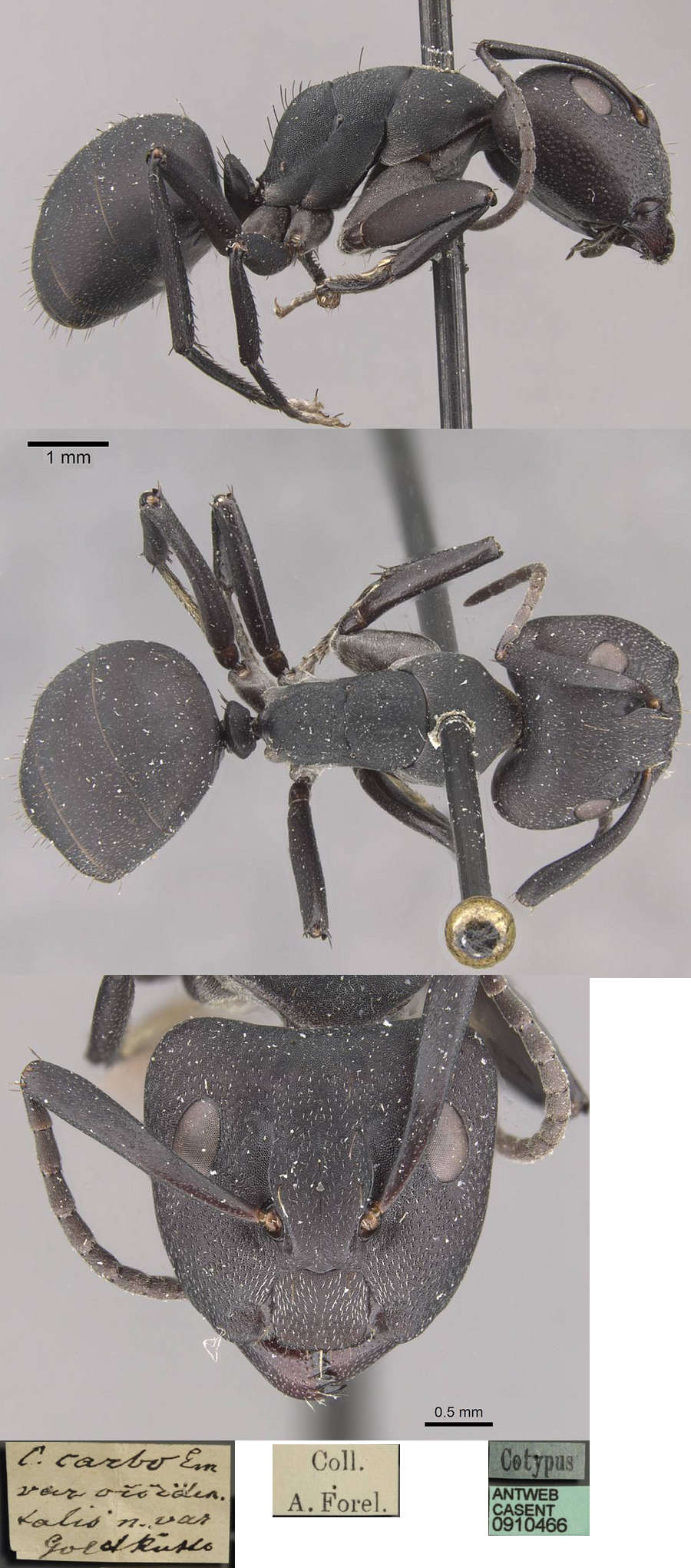

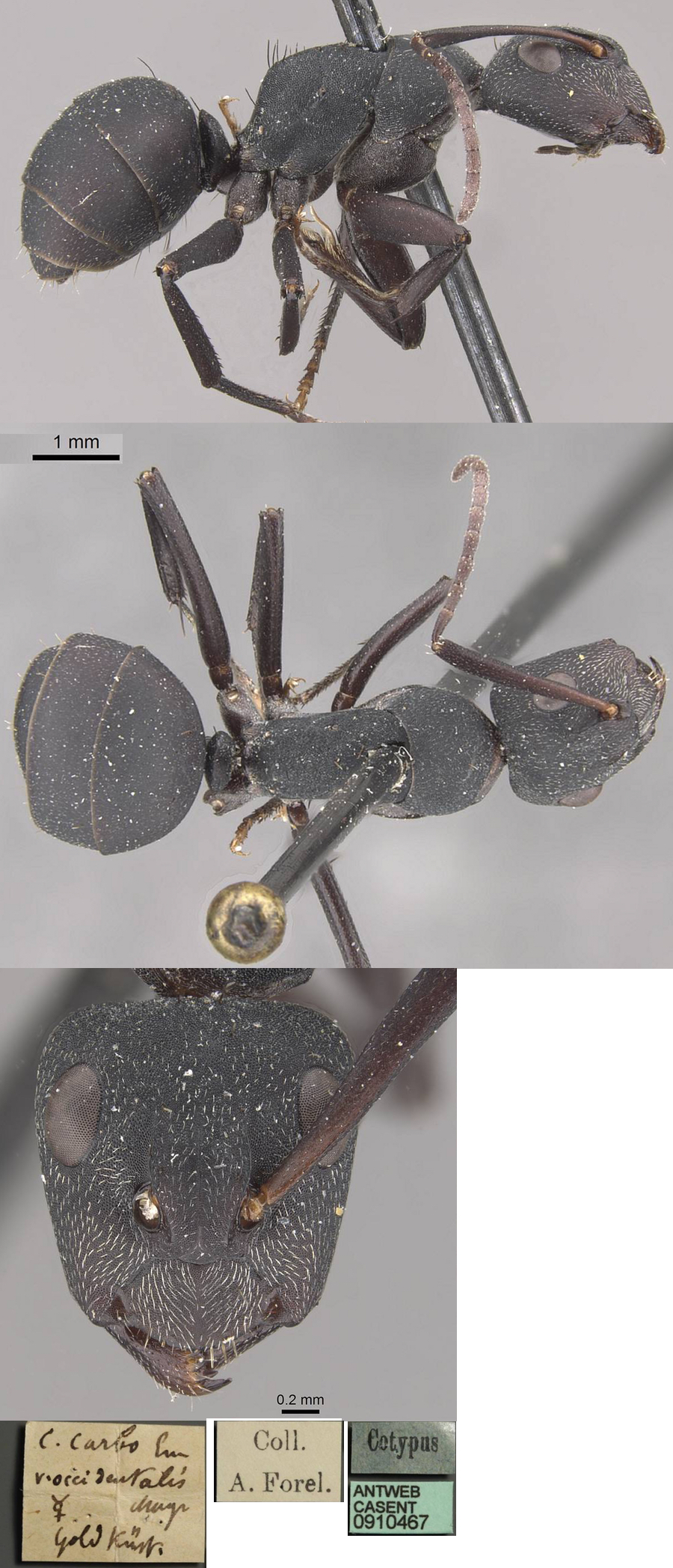

subspecies occidentalis (Camponotus carbo Em. var. occidentalis nov. var., Forel, 1902: 300, major & minor workers) from Ghana, collected at Accra, by R. Buchholz - see http://www.antweb.org/specimenImages.do?code=casent0910466
oldier and worker (see Bolton, 1995) .

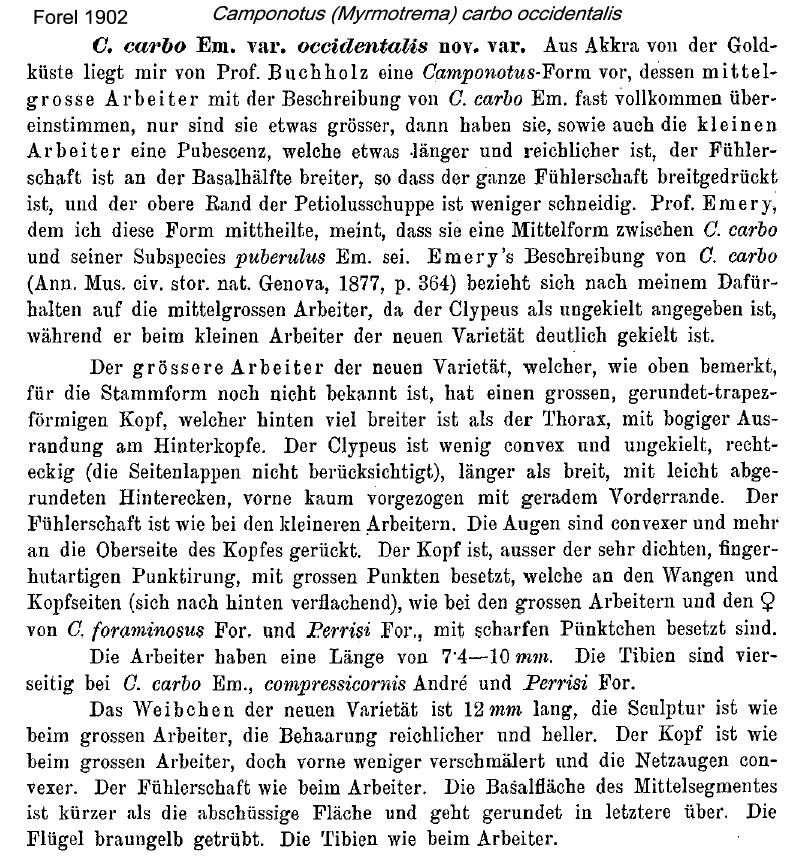

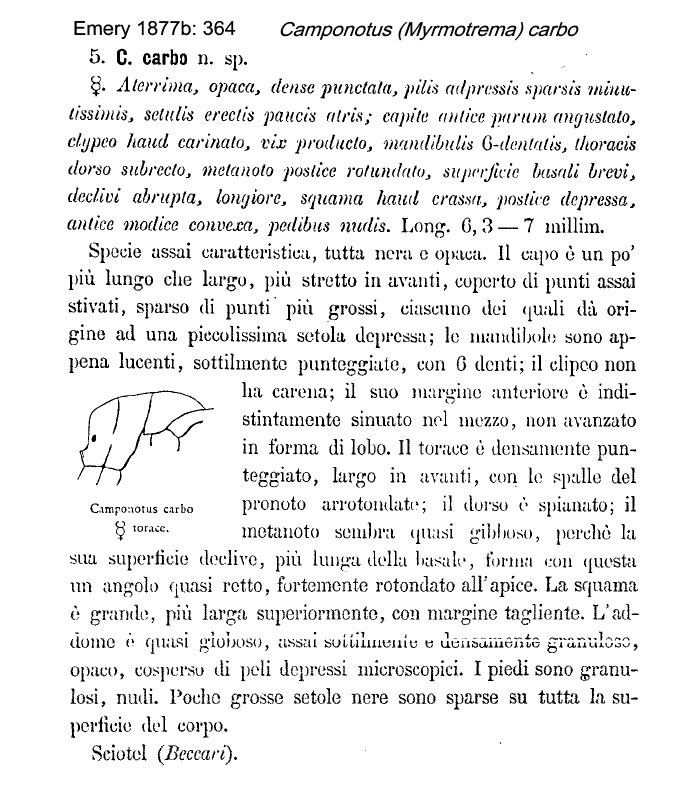

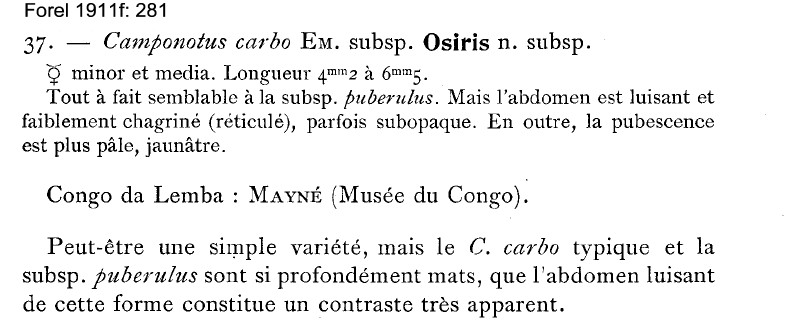

{Camponotus (Myrmotrema) carbo}Emery's (1877b) description is at {original description}. Forel's (1902) description of occidentalis is at {original description}. Forel's (1911f) description of osiris is at {original description}.

In his description of osiris (ssp of Camponotus olivieri), Forel (1911f) noted how carbo and Camponotus (Myrmotrema) puberulus, from Ethiopia, were profoundly matt.


Santschi's Key (1915c) separated the species by its having prismatic tibiae and scapes which are flattened but only moderately expanded from base to apex; a rectangular clypeus; and, brown erect hairs. He separated the type and occidentalis on the latter having more distinct pubescence.

Listed from Zaïre by Wheeler (1922); also given as a savannah species in Ivory Coast by Lévieux & Louis (1975). Forel (1911f) reported carbo ssp puberulus from Zaïre, Congo da Lemba by Mayné; note puberulus, first described by Emery (1897e), type location Somalia, was raised to species by Santschi (1915c; see Bolton, 1995).

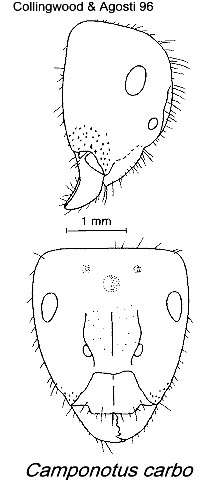

{Camponotus carbo}In their report of species from Saudi Arabia, with the illustration (right), Collingwood & Agosti (1996), separate it in their key by -
body colour uniformly dark; head with front part with large scattered pits, genae with projecting hairs, whole of head including occiput fringed with short hairs, antennae broadening to apex. In their species notes, they add - clypeus projecting forward, anterior border with broken, bluntly serrated edge, and distinct keel (median carina) which continues posteriorly between the frontal carinae. Head densely sculptured, microreticulate and dull with scattered large punctures towards the genae, across the clypeus and lower frons; also on proximal third of scape which widens from a narrow base to about 1.5 times wider at the apex. Alitrunk dorsum simply arched in lateral profile with distinct mesonotal and metanotal sutures. Petiole a simple scale almost as high as propodeum. Dense sculpturation of head continues over alitrunk, gaster more finely reticulostriate and generally dull. In addition to short erect hairs over the whole head, there are numerous longer hairs on the pronotum, posterior propodeum and dorsum of gaster.

The type description (Emery, 19887b) specifically noted the clypeus is without a median carina and makes no mention of erect hairs on the genae, giving erect hairs as sparse everywhere.  The gaster was given as subtly but densely granulose.  The Saudi Arabian specimen, therefore, seems highly unlikely to have been C. carbo and perhaps is Camponotus (Tanaemyrmex) acvapimensis.

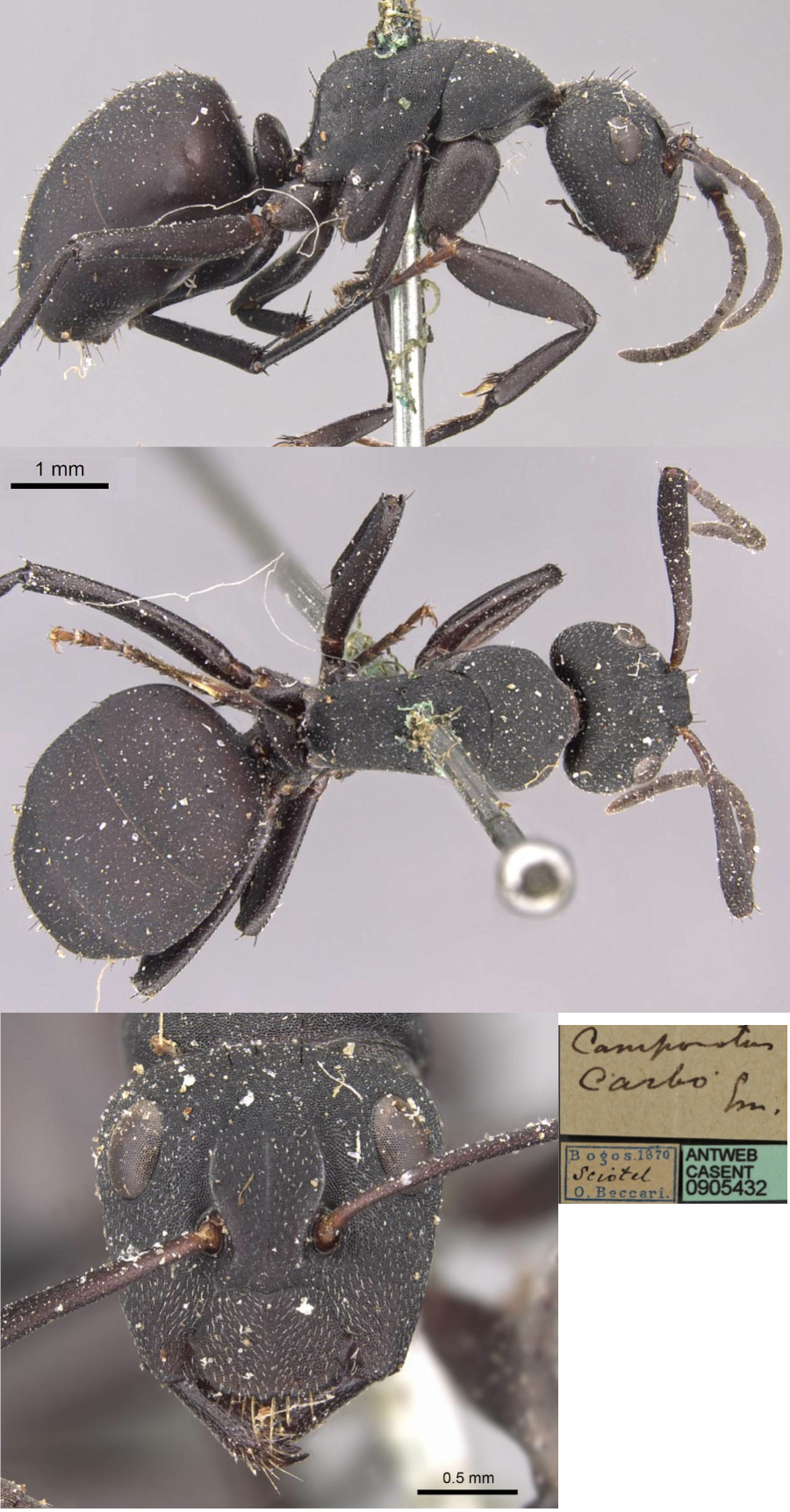

{Camponotus carbo}The photomontage of a (?) minor worker from the type collection is collated from http://www.antweb.org/specimen.do?name=casent0905432


Oxford University Museum specimens

Camponotus (Myrmotrema) carbo
B Taylor det.


Senegal
Tambacounda
B Ndiaye
Bambaraya
13°06'30"N
12°05'18" W
Bambaraya 06-V-09 St 4 sur arbre
264 m; Soudanian savannah, by hand; on tree, major & minor

2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Senegal
Tambacounda
B Ndiaye

Dindifa
13°09'40" N
12°06'46" W
Dindifa 10-V-09 St 7 P18F [A]
213 m; Soudanian savannah, pitfall traps

1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Senegal
Tambacounda
B Ndiaye
Maka Madina
13°03'42" N
12°07'03" W
Maka Madina 6-V-09 St 3 P5B
186 m; Soudanian savannah, pitfall traps; minor
1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Senegal
Tambacounda
B Ndiaye
Wassa
13°06'30"N
12°05'18" W
Wassa 04-V-09 St 1 P6F
Soudanian savannah, pitfall traps
major
1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Senegal
Kolda
B Ndiaye
Kolo
12°45'0" N
13°41'60" W
Kolo 7-V-09 souche arbuste
48 m; Soudanian savannah, hand collection rotting wood
2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Senegal
Koda
B Ndiaye
Kolo
12°45'0" N
13°41'60" W
Sabodola 11-VIII-09 Koilo St5 [A]
48 m; Soudanian savannah, from label; minor worker
1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2887
18.x.2012
Korobourou
09°22'13'' N
02°40'16'' E
On Mangifera indica
Quadrat 6, tube 1, variété: Ifac
Arboreal

2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2979
7.xi.2012
Koro
09°22'21'' N
02°40'13'' E
Running on ground
Major worker

1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2962
8.xi.2012
Koro
09°22'21'' N
02°40'13'' E
At base of Anacardium occidentale
To 15
Ground nesting
Minor workers
3
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2964
8.xi.2012
Koro
09°22'21'' N
02°40'13'' E
Anacardium occidentale
To 15; arboreal nesting in hollow branch;
antagonist of Oecophylla longinoda

3
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2985
7.xi.2012
Koro
09°22'21'' N
02°40'13'' E
On ground
Minor

1
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 2986
6.xi.2012
Boko
09°22'21'' N
02°40'13'' E
Foraging on Entadda africana
Media

2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 3063.1
27.iii.2013
Koro
09°22'21'' N
02°40'13'' E
Mangifera indica orchard
prey of Oecophylla longinoda
1600-1700 h
major
2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 3075.1

13.iii.2013
Koro
09°22'21'' N
02°40'13'' E
Mangifera indica orchard
prey of Oecophylla longinoda
1600-1700 h
media
2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 3089.1
27.xii.2012
Koro
09°22'21'' N
02°40'13'' E
Anacardium occidentale
hand collected
major & minor


2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 3092.1

10.xi.2011
Tanquiéta
10°40'05'' N
01°18'14'' E
Acacia hockii
beating
234 m asl

2
{album}
Camponotus (Myrmotrema) carbo
B Taylor det.
Benin
J-F Vayssieres
RVA 3093.2
10.xi.2011
Tanquiéta
10°40'05'' N
01°18'14'' E
Acacia sieberiana
beating
234 m asl

2
{album}

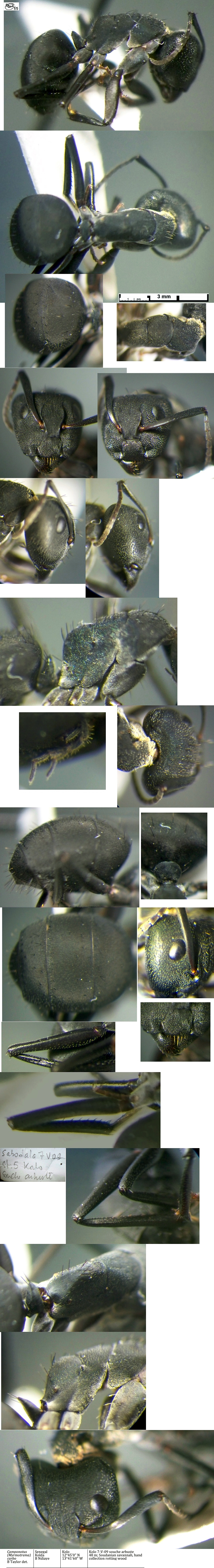

{Camponotus carbo major}The photomontage is of a major worker from Senegal, Sabodala, Kolo; collector B Ndiaye (7.v.2009, st 5).

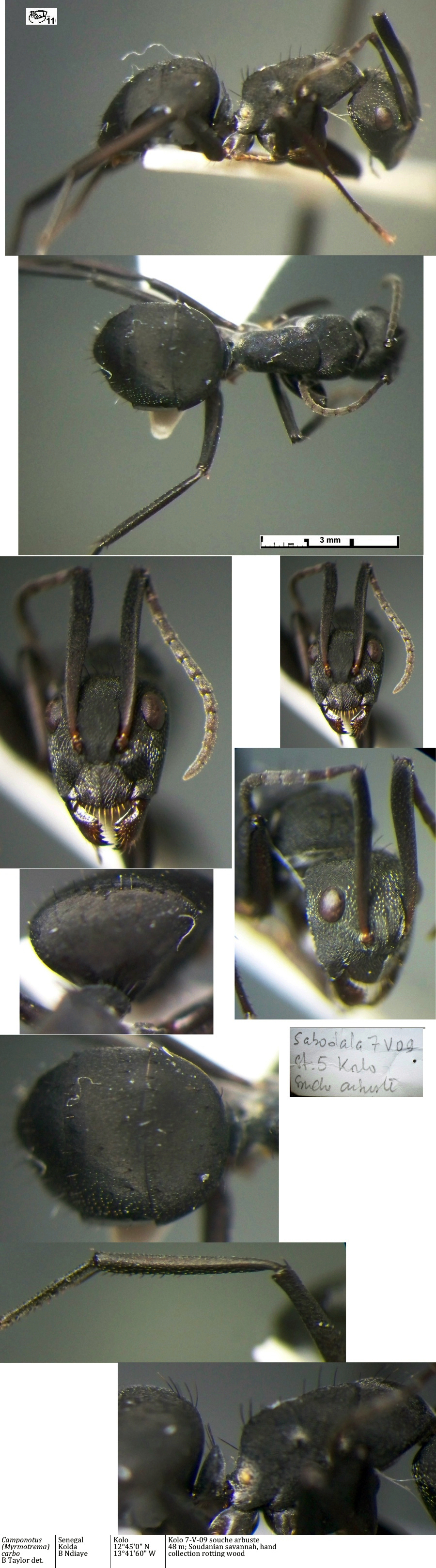

{Camponotus carbo minor}The photomontage is of a minor worker from Senegal, Sabodala, Kolo; collector B Ndiaye (7.v.2009, st 5).

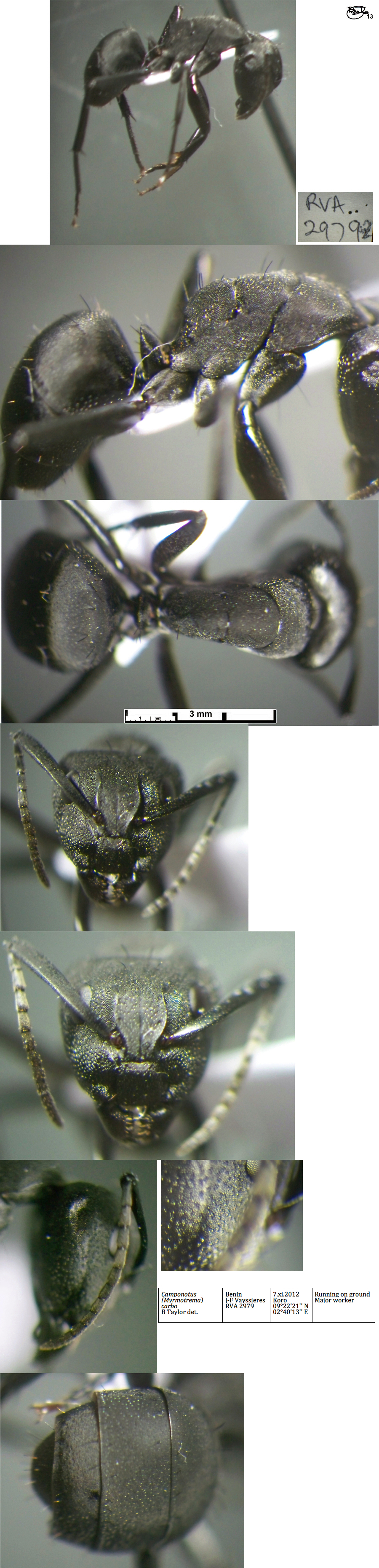

{Camponotus carbo major}The photomontage is of a major worker from Benin, Koro; collector J-F Vayessieres (RVA 2979).


{Camponotus carbo minor}The photomontage is of a media worker from Benin, Koro; collector J-F Vayessieres (RVA 2964).
