Type location Sierra Leone (Illiger, 1802: 188,
male) from a single male specimen. .
Illiger's (1802) description is at .
|
Haldeman (1849a)
gave illustrations of the male head and F Smith (1859) included the
petiole profile in a plate comparing Dorylus males.
Raignier & van Boven (1955) cite Illiger's
description as - "Schwärzliche Aemsenwespe [blackish wasp], nigricans,
brunneo-holo-sericeus, abdominis petiolo acetabuliformi. Lange : Einen
Zoll [ca TL 25 mm] bis einen Zoll und drei Linien [TL 28.4 mm]". The
specimen was a little bigger than the already known species Dorylus
(Dorylus) helvolus and without hairs; the wings of nigricans
were smoky black with black veins.
Forel (1909b: 11) in his notes on emeryi noted nigricans
MALE - HW 5.0, HL 6.0, gaster 5.6 mm.
|
Thus, the Illiger, Shuckard, Haldeman, F Smith male
has -
Dark smoky black wings;
The alitrunk dorsum has a shiny brown pubescence;
A steeply domed head, with relatively small eyes and a straight margin
across between the anterior of the compound eyes;
The petiole profile has a shallow curve from the anterior to the
dorsum, the ventral process has a straight anterior at about 45° and
the posterior is convex.
|

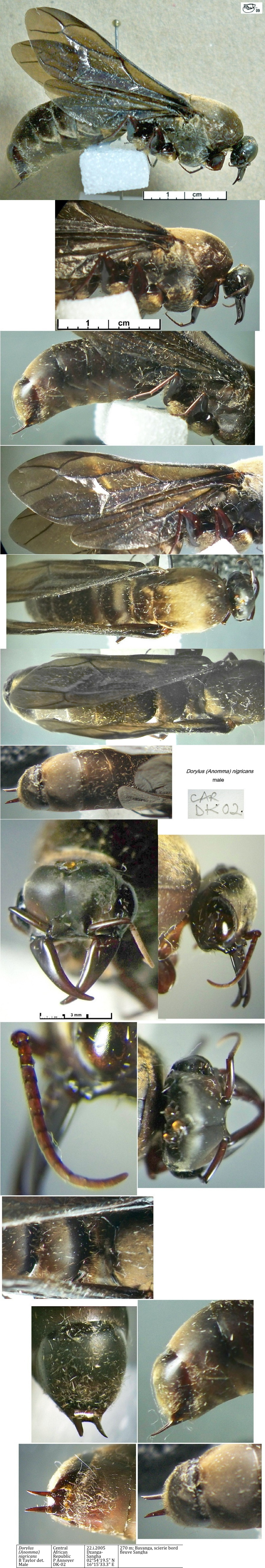

The photomontage is of a
specimen from the Central African Republic; Bayanga, scierie
bord fleuve Sangha; collector Philippe Annoyer (CAR DK02).
Head shape matches Haldeman - flatter occiput, strong
median sulcus, shorter scapes; shorter mandibles; scape length to basal
7.1 segments of funiculus; SL = distance between inner margin of eye
and centre of median ocellus (in full face view scape reaches median
sulcus); eye shorter but just as wide, EW/EL = 79; ocelli set closer
together; from above front of head is concave; posterior margin of
petiole is near flat, with a distinct fringe of hairs; gaster apex,
evenly convex, with prominent stipes extruding.
Those below match Emery (1910) - no frontal sulcus,
occiput domed; from above front of head is convex; scape length to
basal 6.3 segments of funiculus; SL = distance between inner margin of
eye and outer edge of median ocellus (in full face view scape does not
reach the faint median line); EW/EL = 71/66; posterior margin of
petiole is shallowly concave; without any fringing hairs (Antweb
specimen from different angle to my two; apex of gaster shallowly
concave, with the stipes barely visible.
|

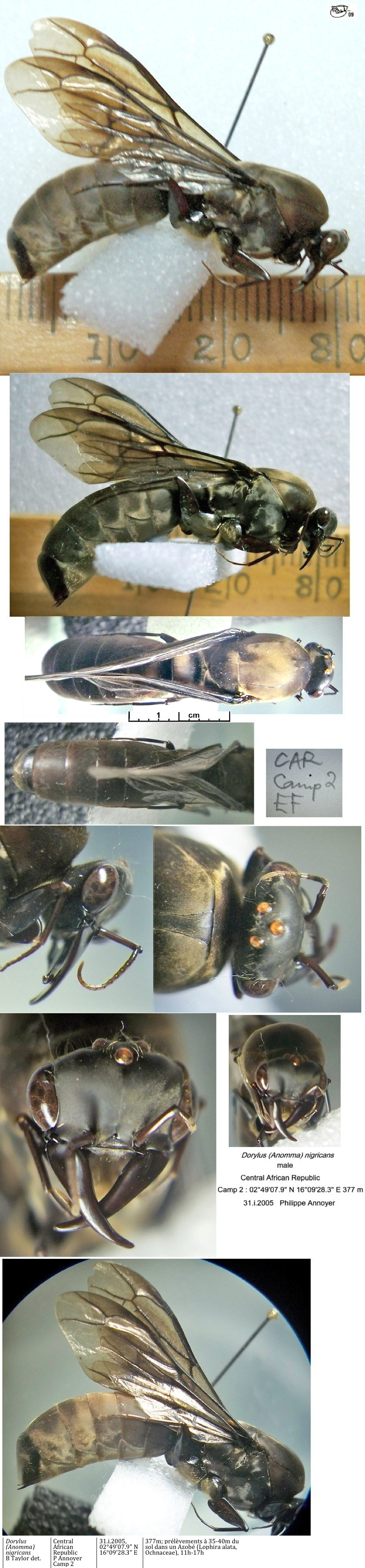

The photomontage is of a
specimen from the Central African Republic, Dzanga-Sangha
National Park; collector Philippe
Annoyer (CAR Camp 2).
|

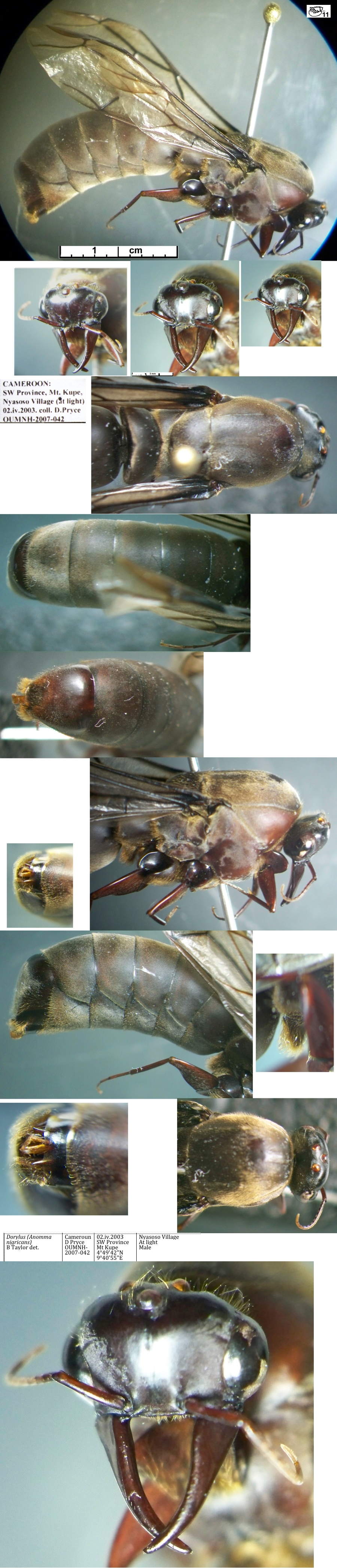

The photomontage is of a
specimen from the Cameroun, Kupe; collector D Price (OUMNH
2007-042).
|
|
